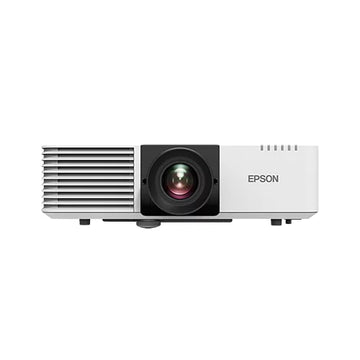

Epson EB-L630SU laser short throw business projector

Laser light source 3LCD short throw projector

Epson's new model laser projector EB-L630SU is suitable for use in different conference rooms and educational institutions. Despite its small size, the EB-L630SU offers 6,000 lumens of color brightness1, Full HD WUXGA resolution, and a host of great features, including 4K image input, HDBaseT and HDMI connectivity, screen mirroring, and lens shift capabilities. The laser light source of EB-L630SU has a lifespan of up to 20,000 hours*, making it more stable and secure to use.

• • 6,000 lumens color brightness1: No need to turn off room lights, images remain clear and bright
  • Native WUXGA (1920 x 1200) resolution: Delicately restore the true colors of images
  • Supports multiple connections: including 4K video input, HDMI®, HDBaseT, Wi-Fi and screen mirroring
  • Installation is simpler and more flexible: the body is lightweight and equipped with a wide range of lens movement function
  • Maintain appropriate social distance: 200" large projection screen, images are still clearly visible regardless of distance
  • Equipped with a short focal length projection lens: can project a larger picture in a limited space (0.8:1 throw ratio)

Projector specifications :

Throw ratio range : 0.80-1.07

Keystone Correction : Horizontal: ±30 degrees

 Vertical: ±30 degrees
size - Projection distance : 50" – 200" (0.85m - 3.49m)

Color reproduction : Up to 1.07 billion colors

Contrast ratio : over 2,500,000:1

Projection system : Epson 3-chip
3LCD technology

Projection method : front projection / rear projection / Ceiling installation

Driver : Epson Poly-silicon TFT Active Matrix

Number of pixels : 2304000 dots (1920 x 1200) x 3

Color brightness - Color brightness output : 6,000 lumen

white brightness - White brightness output : 6,000 lumen

Aspect ratio : 16:10

Native resolution : 1920 x 1200 (WUXGA)

Light source life : 20,000 hours (normal mode)

power supply :

Supply voltage : 100 – 240 V ±10%
50/60 Hz AC

Power consumption : Normal mode: 345 W

generally :

Weight : 8.4 Kilogram

Projection lens :

Type : Manual 1.35

x digital zoom

F Value : 1.7

Focal length : 11.76 mm

Lens offset : vertical: ±50 degrees

 Level: ±20 degrees

General projector :

Interface : RS-232C (D-sub 9 pin) x 1
Computer in (D-sub 15 pin) x 2
Monitor out (D-sub 15 pin) x 1
Audio out (Stereo mini) x 1
Wired LAN x 1
HDBaseTx1
Audio in (Stereo mini) x 2
HDMIx2
HDMI Out x 1
USB-A

Fan noise : Normal mode: 38 dB

Projector size :

Including tripod : 440 x 122 x 304mm
