| projection system | RGB LCD light valve projection system | |||
| Projection method | 360° projection | |||
| Main component parameters | LCD panel | size | 0.62 inches (C2fine) | |
| Drive mode | Polycrystalline silicon TFT active matrix | |||
| screen aspect ratio | 16:9 | |||
| refresh rate | 192Hz-240Hz | |||
| lens | type | Optical zoom (manual)/focus (manual) | ||
| focal length | 2.3 mm | |||
| Zoom ratio | 1-3.5 (digital zoom) | |||
| light source | type | laser diode | ||
| LD input power | 240W | |||
| Lifespan *6 | 20,000 hours | |||
| Resolution | 4,147,200 pixels, 4K enhanced *1 (This resolution supports input signals of 1080p, WUXGA and 4K) | |||
| screen size | 80" to 160" (wide angle) @16:9 60" to 118" (telephoto) @16:9 |
|||
| Lens shift range | none | |||
| Brightness*3*4 | standard | 5,700 lumens *4*5 (center), 5,000 lumens *3*4 (ISO) (color mode: dynamic) | ||
| Quiet/Extended | 3,500 lumens *3*4 (color mode: dynamic) | |||
| Color brightness*3*4 | 5,000 lumens (color mode: Dynamic) | |||
| Compare*3*4 | Over 2,500,000:1 (Color Mode: Dynamic, Lighting Mode: Standard, Zoom: Wide Angle, Lens Shift: Vertical -50% to 50%/Horizontal Centered) | |||
| Light output uniformity | 81% | |||
| color reproduction | More than 1.07 billion colors | |||
| color processing | 10 people | |||
| mute video | support | |||
| Exquisite picture quality | color mode | Dynamic, staged, theater, nature, blackboard, DICOM SIM, multi-screen projection, face brightening | ||
| Noise reduction | support | |||
| high dynamic range | support | |||
| MPEG noise reduction | support | |||
| 4K enhanced *1 | support | |||
| frame interpolation | support | |||
| super resolution | support | |||
| Gamma custom adjustment | support | |||
| Easy-to-use features | Geometric Correction | support | ||
| edge blending | support | |||
| Schedule settings | support | |||
| Signal source search | support | |||
| Password protection function (security function) | Yes (protect user ID, protect network settings, protect trip settings, boot) | |||
| Effective scanning frequency band (digital signal) | dot clock | 25.1MHz to 594MHz | ||
| level | 26kHz to 135kHz | |||
| vertical | 23.98/24/25/29.97/30/50/59.94/60Hz | |||
| Video input/output | input signal | digital signal | HDMI | 2 (support HDCP2.3) |
| High quality-BaseT | 1 (support HDCP2.3) | |||
| Output signal | digital signal | HDMI | 1 (support HDCP2.3) | |
| Control signal input/output | RS-232C | D-sub 9-pin | 1 | |
| USB input/output | Type A | 2 (1. Unlimited synchronization, firmware upgrade, wireless LAN, copy OSD settings, external camera power supply function; 2. Unlimited synchronization, firmware upgrade, wireless LAN, copy OSD settings or use for 5V/2A power supply) | ||
| Type B | 1 (for firmware upgrade and copying OSD settings) | |||
| Network input/output | Wired LAN | RJ45 | 1 | |
| Wireless LAN | Type A | 1 (for memory I/O) | ||
| operating temperature | 0°C to 40°C * (0m to 2,286m) * When the ambient temperature is too high, the brightness will automatically decrease |
|||
| operating height | 0m to 3,048m (over 1,500m: use high altitude mode) | |||
| storage temperature | -10°C to 60°C (10%-90% humidity, no condensation) | |||
| Boot directly | support | |||
| Shut down directly | support | |||
| boot time | Less than 8 seconds (EPSON Logo) Warm-up time: 28 seconds * Fast boot time less than 12 seconds (display time) |
|||
| Cooling time | Instant cooling | |||
| Dust net | Maintenance cycle | 20,000H when used in a general office environment (floating dust amount: 0.04-0.2mg/m 3 ) based on Epson’s indoor test results | ||
| Anti-theft | Cable keyhole | support | ||
| Kensington lock | support | |||
| Wireless projection unit lock | support | |||
| power consumption | Laser light source (brightness mode: normal) | 398W | ||
| Laser light source (brightness mode: extended) | 296 watts | |||
| network standby | 2.0W | |||
| Energy saving | 0.4W | |||
| Rated voltage & rated current | 100 - 240 Volts AC 50/60 Hz 4.0-1.8 A | |||
| weight | 12.5kg | |||
| size | Without support feet (W x H x D) | 695×145×341 mm | ||
| Maximum size (W x H x D) | 695×156×341 mm | |||
| fan noise | Power consumption: standard | 35dB | ||
| Power consumption: energy saving | 26 decibels | |||
| appendix | ||||
| power cable | 3m | |||
| remote control | have | |||
| Battery | AAx2 | |||
| cable cover | have | |||
| User manual | have | |||
| Optional accessories | ||||
| air filter | ELPAF56 | |||
| External camera | ELPEC01 | |||
| Wireless projection unit | ELPA11 | |||
| HDBaseT transmitter | ELPHD01 | |||

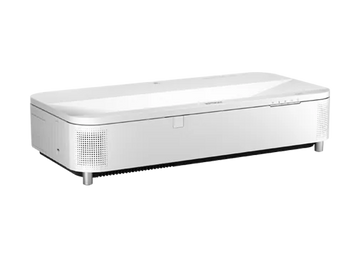

Epson EB-810E 4K Laser Ultra Short Throw 3LCD Projector
Regular price
$27,800.00
Sale price
$27,800.00
Regular price
$29,980.00
Unit price
Epson EB-810E 4K Laser Ultra Short Throw 3LCD Projector
Regular price
$27,800.00
Sale price
$27,800.00
Regular price
$29,980.00
Unit price
產品詳情
Shipping & Return
產品評論
4K enhancement technology *1
Epson’s 4K enhancement *1 technology doubles the pixel enhancement diagonally to double the resolution, making the picture clearer and more vivid.
Laser light source 20,000 hours *6 long life
The application of laser light sources can effectively reduce brightness attenuation during use. The life of the light source can reach 20,000 hours *6 , effectively reducing the burden of light source maintenance.
0.16 ultra-short throw ratio, ultra-short distance to achieve 160-inch large screen
Projecting a 100-inch screen only requires 9.8 centimeters from the wall. Epson's proprietary lens enables large-screen projection with less space between the screen and the wall. It can be projected to a large screen of up to 160 inches.
3LCD technology brings high-quality images
All Epson projectors apply 3LCD technology to achieve higher light utilization efficiency. 3LCD projectors have higher color brightness and softer color transitions. The principle is to decompose the image into three primary colors, process them separately, and then mix and project them through the lens.
HDR high dynamic range
Supports HDR10 and HLG standards, enabling dynamic output over a wide tonal range with minimal white or black spots.
Rich image adjustment functions
Detail enhancement and super-resolution features provide excellent visibility for both pictures and text.
Rich interface
EB-810E supports a variety of transmission interfaces and can meet various needs in practical applications. HDMI input and output, HDBaseT, USB, wireless transmission supports three methods: mirror transmission, Epson wireless projector and iProjection wireless projection software.
Supports hanger installation
A super large screen can be achieved through the hanger.
Ultra short throw + simple design
Highly space-friendly, suitable for any office or meeting space.
Desktop installation is easier
With its compact size and weight, anyone can easily install the projection, saving time and labor costs.
Mobile App: Epson Projector Setting Assistant
When setting up the projector, the app can be downloaded to the smartphone via the QR code displayed on the projection screen. This app can be used to set up your projector more easily.
Wireless connection via Miracast function
Miracast® allows smart devices and laptops to easily connect to projectors * . No software installation and wiring required. Fast wireless connection briefing.
* Miracast is a registered trademark of the Wi-Fi Alliance. Laptop or mobile device must support Miracast *
USB playlist content playback function
Using Epson Projector Content Manager software and the projector's content playback function, you can use USB storage to play back pictures and videos without the need for a personal computer.
Playlists can be customized in the following ways:
- Add a new picture or video
- Set up overlay effects
- Set a schedule
- Export to USB memory
16:6 ultra wide screen projection
Can output two screens at the same time and project at the same time. For example: video image projection + related description material projection.
Edge blending function
The EB-810E's built-in edge blending function can use two projectors to splice an ultra-wide screen image, allowing the two images to be seamlessly connected, giving users a richer experience.
Remark:
*1 The 4K enhancement function can shift the pixels by 0.5 pixels in the diagonal direction to double the resolution, and the clarity exceeds the image quality of Full HD. The physical resolution is still 1920 x 1080.
*2 Maintenance here: only refers to the replacement of the light source or dust filter. 20,000 hours is the approximate usage time from when the projector is used for the first time until the light source brightness is reduced to 50%. Based on accelerated test results under simulated usage environment (floating and sinking volume 0.04-0.20 mg/m3). The aforementioned time is not a promised time, and the actual time will vary greatly due to factors such as usage patterns, environmental conditions, and user habits.
*3 The "Information Display Measurement Standard" (IDMS) released the measurement method of color brightness in June 2012. The "Information Display Measurement Standard" (IDMS) is prepared by the International Committee on Display Metrology (ICDM) under the management of the International Society for Information Display (SID). . Based on the ISO21118 standard, this nominal value represents the average value of the product during mass production, and the lowest value of the product before leaving the factory is 80% of the nominal value.
*4 Brightness and contrast data are based on: color mode: dynamic, zoom: wide angle, auto iris: on.
*5 This brightness is the light output value at the center of the screen in dynamic mode. There is no official measurement standard for center brightness. Each manufacturer's method of measuring center brightness is independent. It is recommended to refer to the color brightness measured by IDM15.4 and the white brightness measured by ISO 21118.
*6 The brightness of the laser light source will gradually decrease as the use time increases. The actual service life of a laser light source will vary greatly depending on factors such as usage patterns, environmental conditions, and user habits. When the projector is used in low brightness mode, the service life of the laser light source will be effectively extended.
Laser light source
160-inch large screen
4K enhanced *1
high dynamic range
Ultra wide screen display
