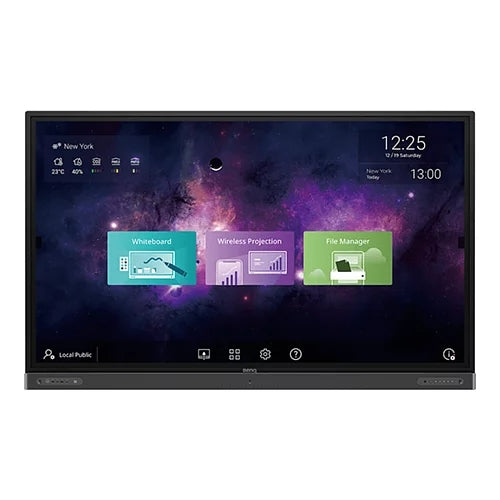

BenQ RP series enterprise-grade touch interactive screens
Regular price
$30,899.00
Sale price
$30,899.00
Regular price
Unit price
BenQ RP series enterprise-grade touch interactive screens
Regular price
$30,899.00
Sale price
$30,899.00
Regular price
Unit price
產品詳情
Shipping & Return
產品評論
| project | Specification | |
| RP6502/RP7502/RP8602 | ||
| LCD panel | light source | DLED |
| Panel size | RP6502: 65″, RP7502: 75″, RP8602: 86″ | |
| Pixel pitch (mm) | RP6502: 0.372 (horizontal) x 0.372 (vertical) RP7502: 0.43 (horizontal) x 0.43 (vertical) RP8602: 0.4935 (horizontal) x 0.4935 (vertical) |
|
| Native resolution (pixels) | 3840 x 2160 | |
| Brightness (cd/m 2 ) (general) | RP6502: 350 (general) RP7502: 450 (general) RP8602: 400 (general) |
|
| Contrast (general) | 1200:1 | |
| Response time (ms) (general) | 8 (general) | |
| panel bits | RP6502/RP7502: 10 bits (8 bits + FRC) RP8602: 10 bits | |
| Touch | technology | IR |
| Touch method | Finger and stylus (NFC x2) | |
| Resolution | 32767 x 32767 | |
| Throughput | 20 points (hardware specifications) / 10 points (Android) (Will vary depending on operating system and application) |
|
| Accuracy | 90% touchable area +/-1 mm | |
| Touch output | Rear panel: x 2 (USB type B), Front panel: x 1 (USB type B) | |
| Supported operating systems | Ubuntu 14.04 or newer, Windows 7/8/8.1/10, Mac OS X 10.12 or newer, Chrome 54 or newer, Android 4.0 or newer | |
| Operating system without touch driver | Ubuntu, Windows 7/8/8.1/10, Mac OS X 10.12 or newer, Android 4.0 or newer | |
| panel glass | tempered glass | AG 80 outer layer |
| Thickness (mm) | 4 mm, 9H | |
| enter | computer | VGAINx1 |
| video | HDMI IN 2.0 x 3, HDMI OUT (4K support) x 1 | |
| sound settings | Line in (3.5 mm) x 1 (microphone) | |
| USB | USB (type A) x 5 USB (type B) x 3 USB (type C) x 1 |
|
| control | RS-232x1 | |
| TV tuner | none | |
| output | computer | none |
| video | none | |
| sound settings | Line out (3.5 mm) x 1 | |
| External speaker output (L/R) | none | |
| sound settings | Audio power (amplifier) | 16W Studio Speaker x 2 15W Subwoofer x 1 |
| microphone | x 8 | |
| power supply | supply | RP6502: 3.5A RP7502: 5.0A RP8602: 5.5A 100 – 240 V AC, 50/60 Hz |
| Maximum power consumption | RP6502: 202.1 W RP7502: 374.9 W RP8602: 423.1 W | |
| Standby power consumption | < 0.5 W | |
| wake | HDMI, VGA, LAN | |
| environment | operating temperature | 0 – 40 ° C |
| Humidity during operation | 20 – 80% (no condensation) | |
| Storage temperature | -10 – 60 ° C | |
| Storage humidity | 10 – 60% (no condensation) | |
| Show direction | Landscape only | |
| mechanical | Weight (kg) | RP6502: 44 kg RP7502: 61 kg RP8602: 79 kg |
| Dimensions (width x height x depth) (mm) | RP6502: 1505.9 x 951.0 x 121.5 RP7502: 1735.5 x 1085.8 x 130.7 RP8602: 1988.8 x 1229.8 x 138.4 |
|
| Border size – top/bottom/left/right (mm) | 23.4 / 23.4 / 23.4 / 23.4 | |
| Function | Image settings | have |
| Source/Volume Control | have | |
| Enhanced sharpness | have | |
| Remove image retention | have | |
| motion sensor | have | |
| Ambient light sensor | have | |
| 10-bit color processing | have | |
| Customized classroom mode | have | |
| blank screen | have | |
| system | CPU | Dual-core A73+ Dual-core A53/1.5 GHz |
| system memory | 4GB | |
| storage device | 32GB | |
| operating system | Android 8.0 | |
