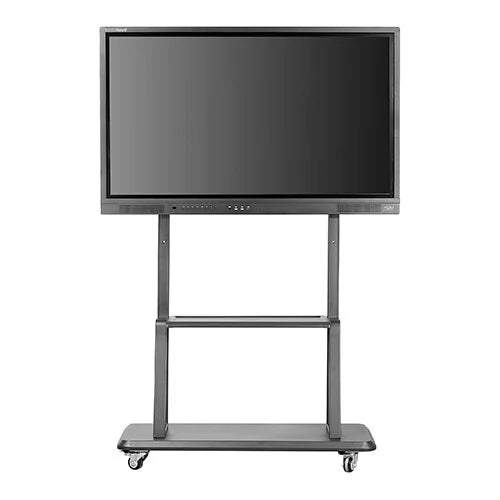

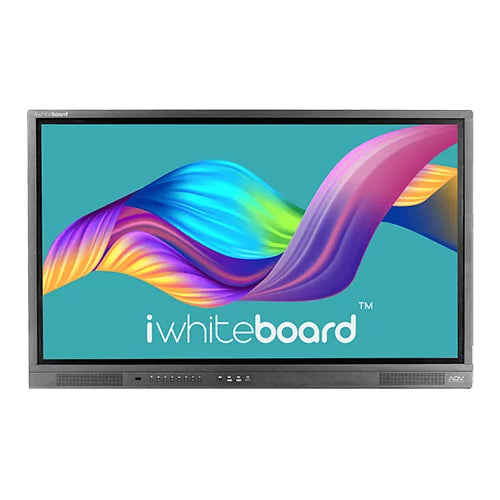

Interactive touch electronic whiteboard

Use smart technology to simplify work and life, giving your business the full potential for success

•40 touch points

•4K UHD (3840*2160) resolution

•LG 4K LED panel

•1.07 billion colors

•1600:1 contrast ratio

•178° viewing angle

•4mm thick Mohs-7 anti-glare glass

•Supports Windows; Mac; Linux; Chrome OS

Flexible, smooth and accurate interactions

Supports 40-point multi-touch, creating an interactive environment for demonstrations and teaching activities.

ultra high definition

The interactive flat panel supports HDR on all models. 3840 x 2160 resolution enhances the dynamic range of pictures.

Model	IWB-AT55F	IWB-AT65F	IWB-AT75F	IWB-AT86F
Display Specification
Diagonal Display Size	55″LED Backlight	65″ LED Backlight	75″LED Backlight	86″LED Backlight
Panel	LG4K LED Panel	LG 4K LED Panel	LG4K LED Panel	LG 4K LED Panel
Active Area (mm)	1209(H)x680(V)	1428.48 (H) x 803.52 (V)	1650.24(H)x928.26(V)	1913.0(H) x 1084.0(V)
Resolution	3840*2160	3840*2160	3840*2160	3840*2160
Pixel Pitch	0.372mm x 0.372mm	0.372mm x 0.372mm	0.429 mm x 0.429 mm	0.429 mm x 0.429 mm
Bock Light	Direct Type LED	Direct Type LED	Direct Type LED	Direct Type LED
Aspect Ratio	16:9	16:9	16:9	16:9
Controst Ratio	1600:1	1600:1	1600:1	1600:1
Colors	1.07 Billion Colors	1.07 Billion Colors	1.07 Billion Colors	1.07 Billion Colors
Brightness	350cd/m2	350cd/m2	350cd/m	350cd/m2
Viewing Angle	178°	178°	178°	178°
Screen Surface	4mm Thickness Mohs-7 level Anti-Glare Glass
Touch System
Technology	IR Touch	IR Touch	IR Touch	IR Touch
HID Support	Yes	Yes	Yes	Yes
Touch Supported	40 Touch Points	40 Touch Points	40 Touch Points	40 Touch Points
Writing Tools	Pen Or Finger	Pen Or Finger	Pen Or Finger	Pen Or Finger
Response Time	7ms	7ms	7ms	7ms
Cursor Speed	125Points/s	125Points/s	125Points/s	125Points/s
Precision	3mm	3mm	3mm	3mm
Connectivity
Front Side	HDMI IN 1-Line, USB 2-Line, USB For Touch 1-Line
RS232 1-Line, MIC IN 1-Line, TF IN 1-Line, USB 2.0 Media 2-Line, HDMI IN – 3 Lines(1Line For OPS PC), SPDIF OUT 1-Line, AV IN 1-Line, AV OUT1 - Line, EARPHONE 1-Line, VGA IN 1-Line, AUDIO IN 1-Line, RJ45 LAN 1 Line, YPBPR 1-LineRS232 1-Line, MIC IN 1-Line, TF IN 1-Line, USB 2.0 Media 2- Line, HDMI IN – 3 Lines(1 Line For OPS PC), SPDIF OUT 1-Line, AV IN 1-Line, AV OUT 1-Line, EARPHONE 1-Line, VGA IN 1-Line, AUDIO IN 1-Line, RJ45 LAN 1 Line, YPBPR 1-LineRS232 1-Line, MIC IN 1-Line, TF IN 1-Line, USB 2.0 Media 2-Line, HDMI IN – 3 Lines(1 Line For OPS PC), SPDIF OUT 1-Line , AV IN 1-Line, AV OUT1-Line, EARPHONE 1-Line, VGA IN 1-Line, AUDIO IN 1-Line, RJ45 LAN 1 Line, YPBPR 1-Lline
Outputs (Speakers)	15W*2
Operating System
Android Version	6.0
CPU	Cortex A53*4 1.5GHz
GPU	T720MP2
RAM	2G
ROM	32G
Compliant With	Windows; Mac; Linux; Chrome OS
Integrated Windows Standard OPS PCCOptional)
Windows OPS PC Slot	Yes
Electrical
Input Voltage	100-240VAC	100-240VAC	100-240VAC	100-240V AC
Power Requirement	Yes	Yes	Yes	Yes
Power Consumption (Standby)	<0.5W	<0.5W	<0.5W	<0.5W
Power Consumption	Maximun< 180W Eco<75W	Maximun< 220W Eco<75W	Maximun< 300W Eco<75W	Maximun< 360W Eco<75W
Physical Specifications
Net Weight (kg±2)	35	45	60	75
Gross Weight (kg±2)	44	58	80	105
Dimension(W*D*H) mm	1291*102*808	1522*107*944	1744*107*1069	1989*107*1207
VESA(mm)	400*400	600*400	600*400	800*600
Accessories
Software And Manuel CD, IWB Pen Without Ink 2pcs, Remote Control, 1.5m Power Cable, 1.5m HDMI Cable, 3m USB Extension Coble, 1.5m HDMI Cable, Wall Bracket
